Aluminium Folding Removalist Walk Ramp 400kg - 2.1m Length

Heavy-Duty Aluminium 2-Way-Fold Removalist Walk Ramp With 400kg Capacity

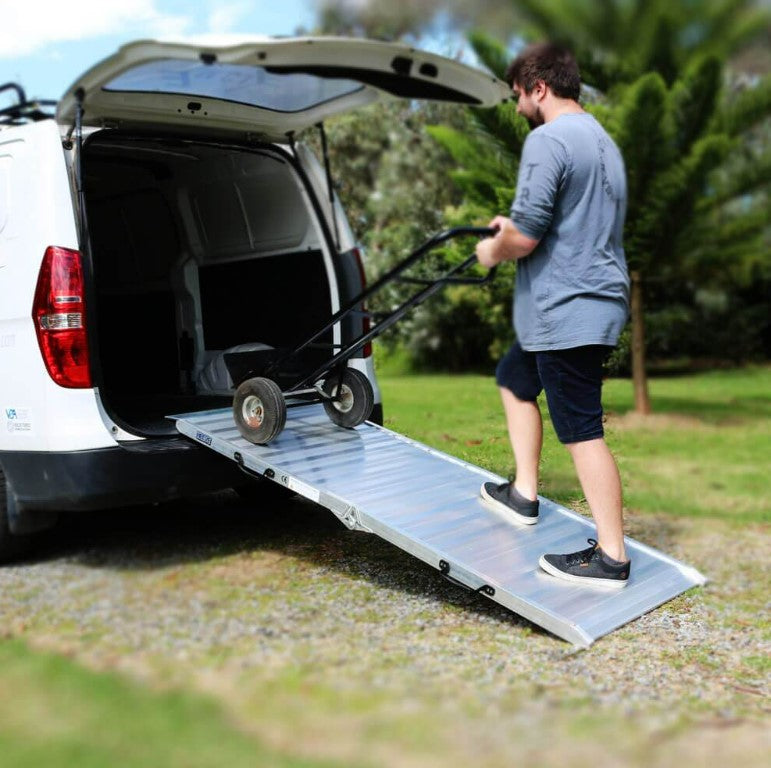

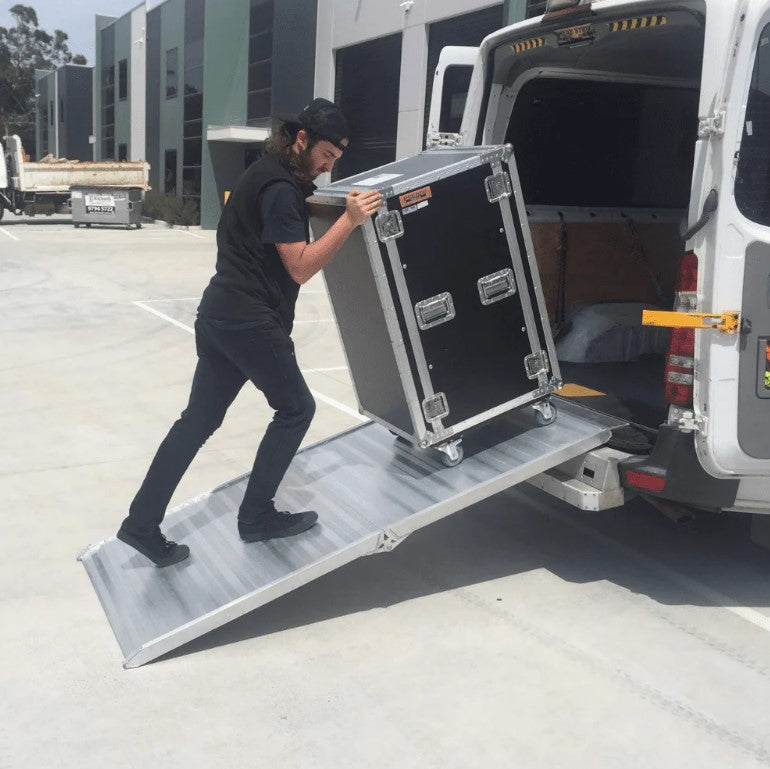

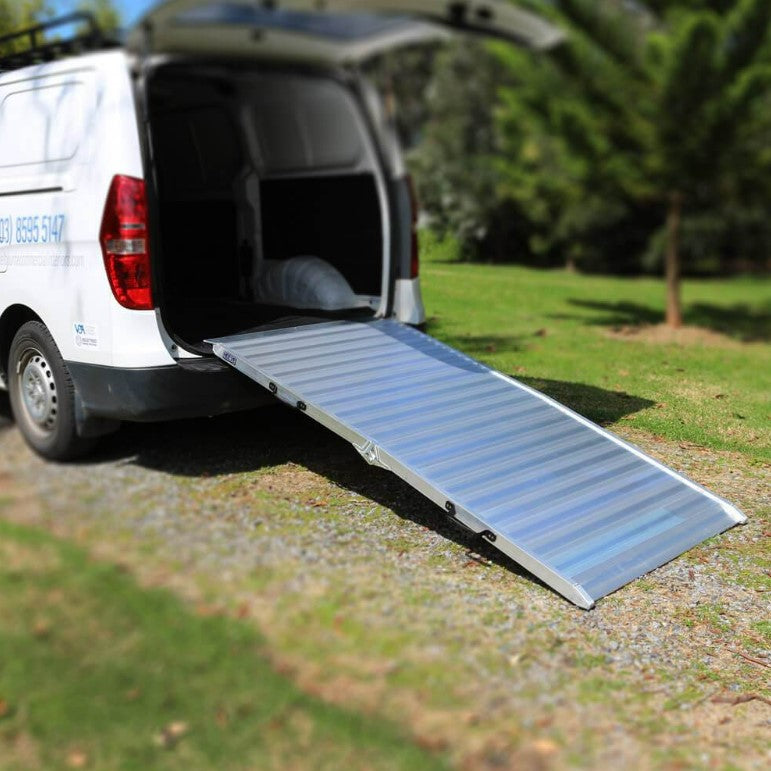

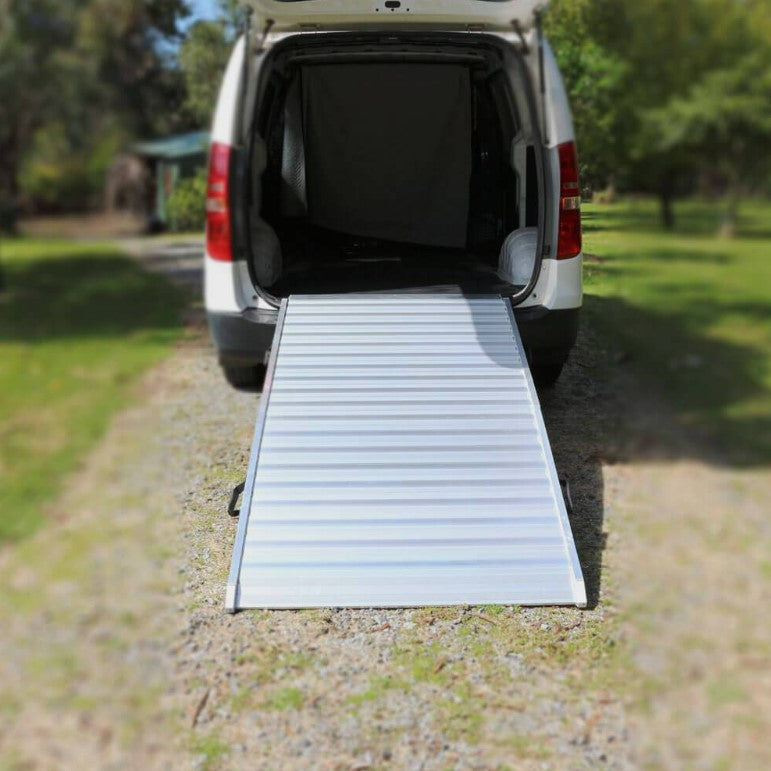

Load trailers, vans, mini-trucks and navigate steps with ease using this heavy-duty aluminium Removalist Walk Ramps.

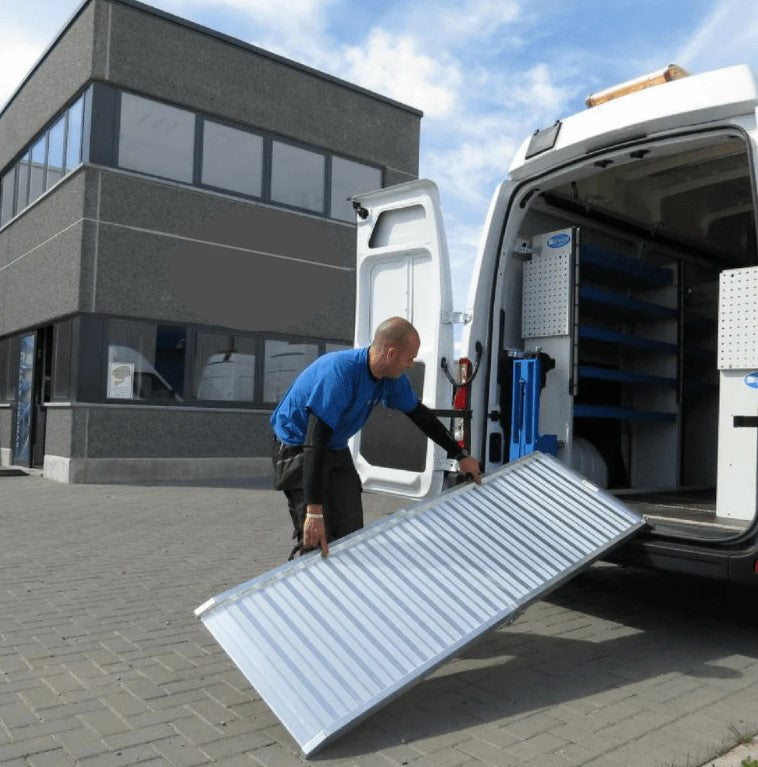

Lightweight and portable the Aluminium Muli-Fold Walk Ramp can easily be carried and positioned in place by one* or two people and can handle weights of up to 400kg whilst folding in half like a suitcase for easy storage.

The versatile walk ramps are high-strength, lightweight and can be used within a number of industries such as removalists, garden maintenance contractors, couriers, mobile trades, hospitality, care & mobility, construction & more for virtually any purpose.

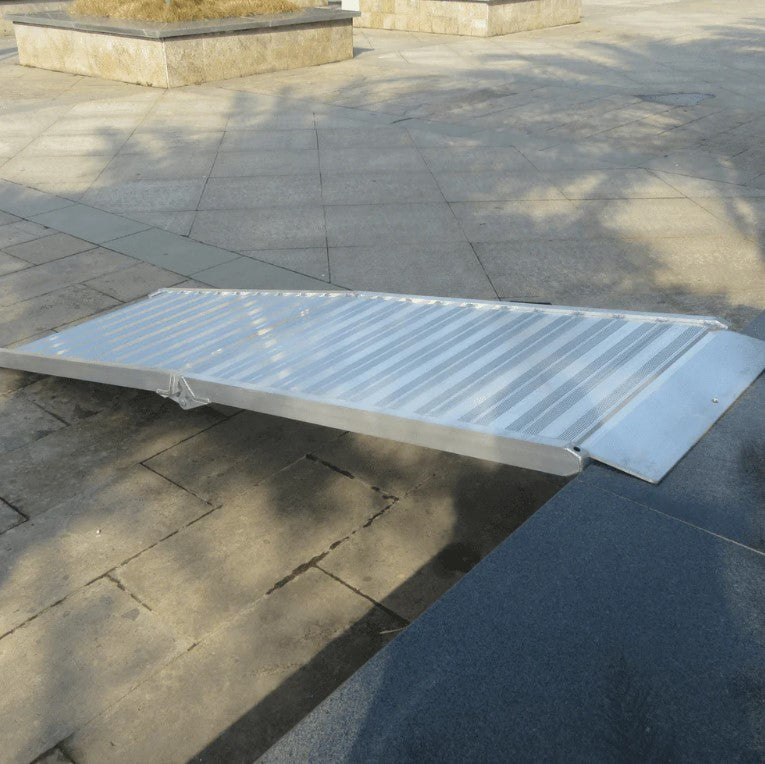

This range of multi-use loading ramps comes complete with a long connection plate and pin as well as a reinforced frame, giving the loading walk ramp the ability to support up to 400kg in weight.

Features and Benefits

• Wide ramp width usage area
• Heavy-duty frame
• Wide enough for trolleys, wheelbarrows etc.
• 400kg weight capacity
• Corrosion-free marine-grade aluminium material

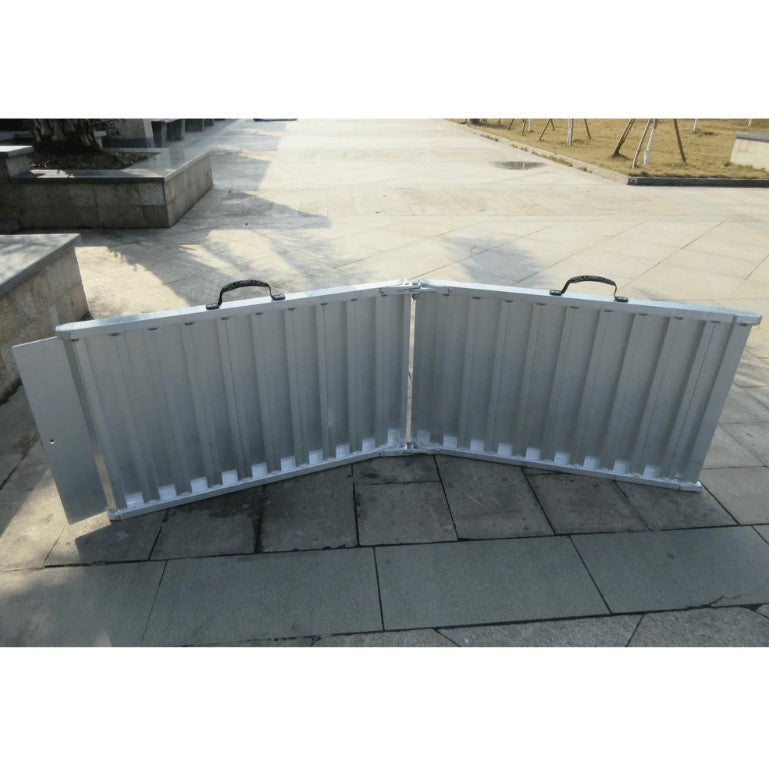

• 2-way fold-away design for maximum convenience
• Carry handles for easy transport
• Raised safety side rails to prevent roll off
• Locking pin to secure your ramp when in use
• Certified to the highest international CE standards guaranteeing the quality and safety of each ramp (EN ISO 12100:2010)

Specifications

• Material: Aluminium body
• Finish: High-grip traction surface

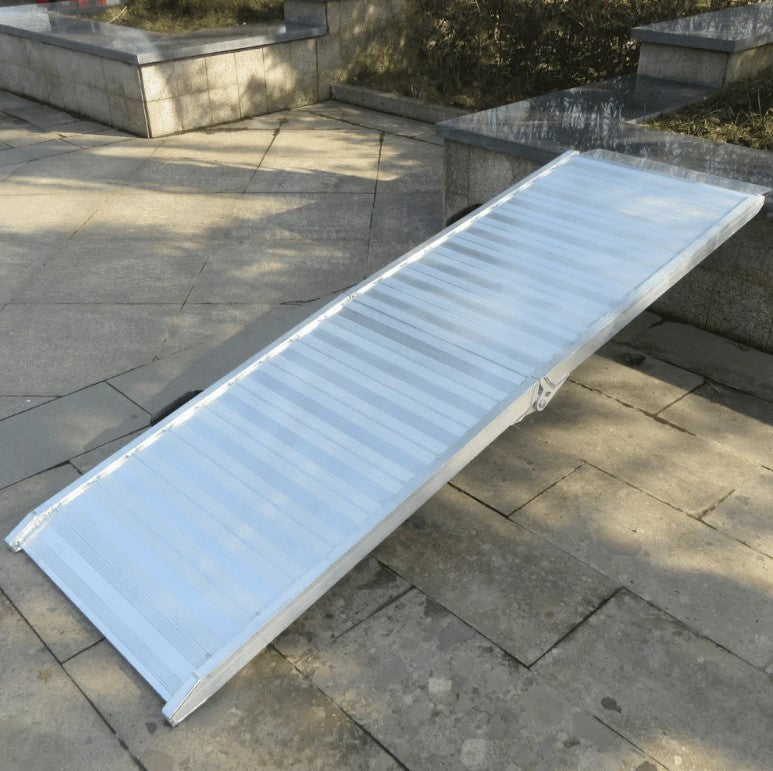

• Dimensions
• 780mm wide ramp: L2150mm x W780mm
• 1050mm wide ramp: L2150mm x W1050mm

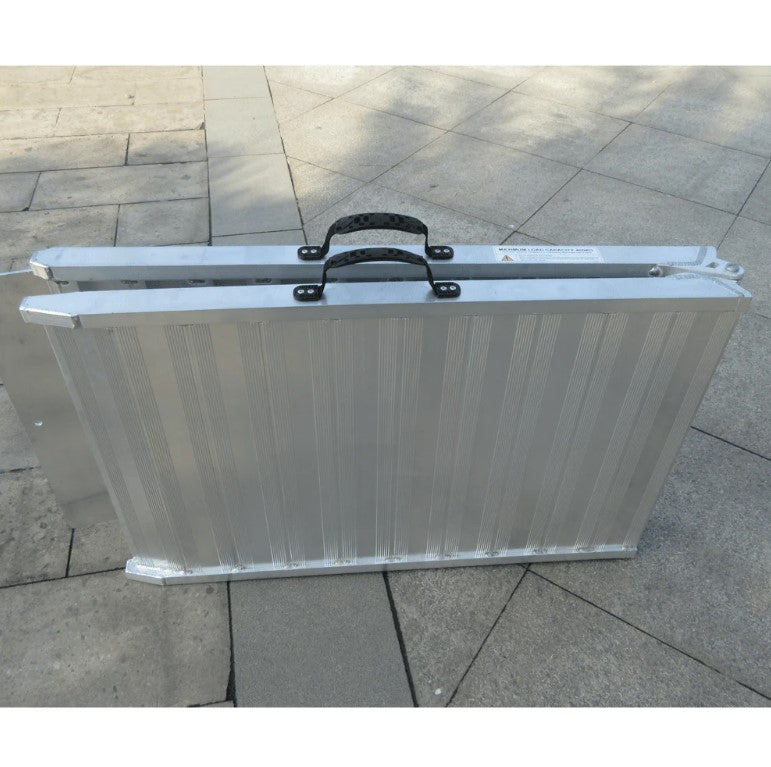

• Folded Dimensions
• 780mm wide ramp: L1160mm x W780mm
• 1050mm wide ramp: L1160mm x W1050mm
• Weight
• 780mm wide ramp: 25kg each
• 1050mm wide ramp: 32kg each
• Maximum Capacity: 400kg

• Side beam width: 25mm
• Side beam height offset: 8mm

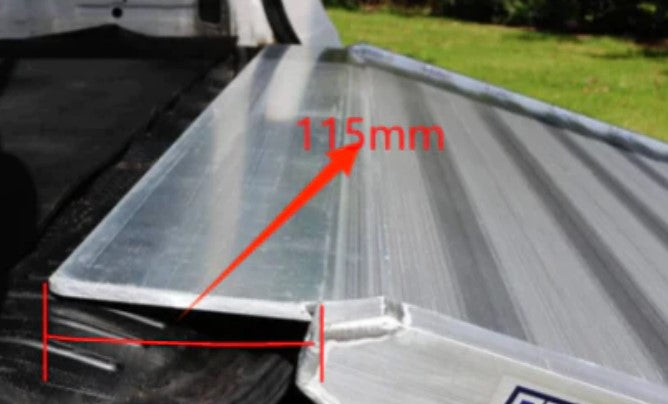

• Connecting Plate: 115mm

* 780mm version can be handled by one person. 1050mm version requires 2 people in some cases to handle the ramp.
